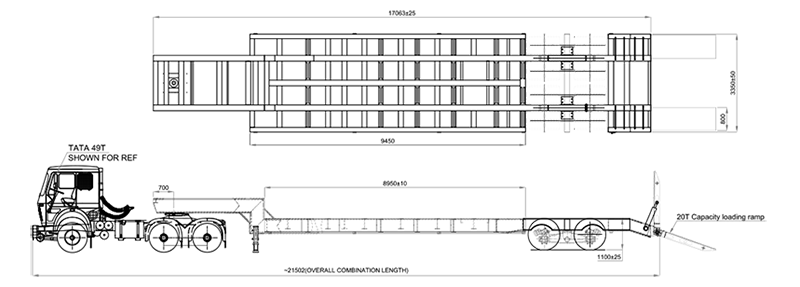

Low Bed Trailer - 56ft 16 Wheeler
SPECIFICATIONS
Trailer weight (Unladen) | 22.7 T ( APPROX ) |
Chassis | All steel welded construction. 2 Nos Main longitudinal members are high strength lighter weight Parallel flange Beam running along full length of the trailer. Main beam – Beam 500mm , Cross members - Rolled or Folded 350mm /450mm beam of material IS-2062/ST-52 are positioned at suitable locations. Side rave – 450 mm beam 5mm thk MS chequered sheet platform. |
Landing leg | Pin type Fabricated manual Landing leg shall be provided at the front end. |
Axles & Suspension | Argonaut axle suspension assembly Shall be provided.(70T load @20Km/H ( Underslung type) |
king pin | 2” King pin equivalent to IS: 6763 Part I provided |
Tyre Wheel rim | 10.00 R 20 16PR – 16 Nos. (JK JDH Radial) 7.50 x 20 – 16 Nos. |
Brakes | Twin line air brake system coupled to tractor brake system. Trailer brakes are actuated from tractor. T24 brake chamber shall be provided all axles. |
Electrical | 24 V DC electrical include tail lamp, brake lamp and direction indicator lamps fitted at rear end of trailer. Side Marker lamps shall be provided on both sides. |
Surface preparation | Trailer surface shall be Shot blasted and cleaned. |
Painting | One coat of primer and one coat of finish enamel paint with colour of customer choice. |
Other fitments | Lashing brackets on both sides |
