34FT 3 AXLE FIXED SIDE WALL TRAILER
SPECIFICATIONS
| Trailer weight (Unladen) | 09.75 T ( APPROX ) |

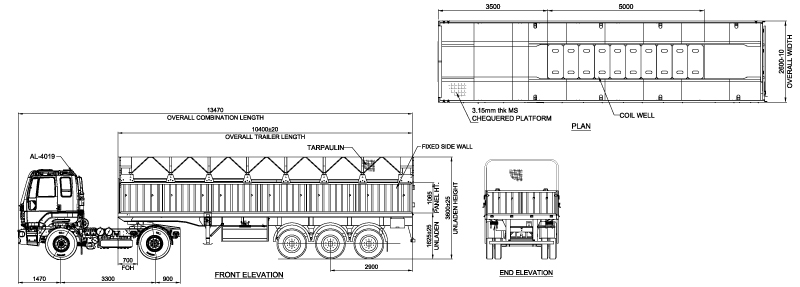

| Chassis | All steel welded construction. 2 Nos Main longitudinal members are high strength lighter weight Parallel flange Beam of ST 52 (or) Equivalent grade steel running along full length of the trailer. Cross members - Rolled or Folded of material IS-2062/ST-52 are positioned at suitable locations. 3.15 MS chequered sheet platform. Fixed front & sides, drop down rear doors shall be provided as shown in G.A drg. 5m coil well shall be provided. Collapsible canopy arrangement Tubular structure with Roller for ease of sliding, shall be provided. Structure shall be covered by Tarpaulin for weather resistance. Rear tarpaulin shall be provided with roll up arrangement. |
| Landing leg | Two speed landing leg shall be provided at the front end. |
| Axles | 3 Nos. 13T Axle Shall be provided York |
| king pin | 2” king pin equivalent to IS : 6763 Part I provided |
| Suspension | Tridem axle leaf spring suspension with load equalizing brackets. York |
| Tyre Wheel rim | 10.00 x 20 – 16 PR – 12 Nos. 7.50 x 20 – 12 Nos. |
| Brakes | Twin line air brake system coupled to tractor brake system. Trailer brakes are actuated from tractor. T24 brake chamber shall be provided on all axles. Parking brake shall be manually actuated. |
| Electrical | 24 V DC electrical include tail lamp, brake lamp and direction indicator lamps fitted at rear end of trailer. Side Marker lamps shall be provided on both sides. |
| Surface preparation | Trailer surface shall be Shot blasted and cleaned. |
| Painting | Two coats of mono coat finish paint with colour of customer choice. |
| Other fitments | Fitments such SUPD, RUPD, reflectors on both sides and rear shall be provided as per CMVR. |
